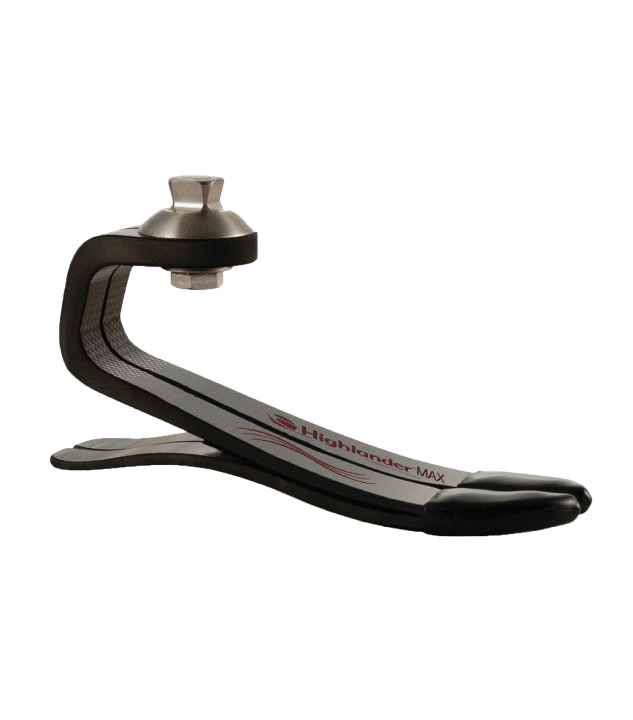

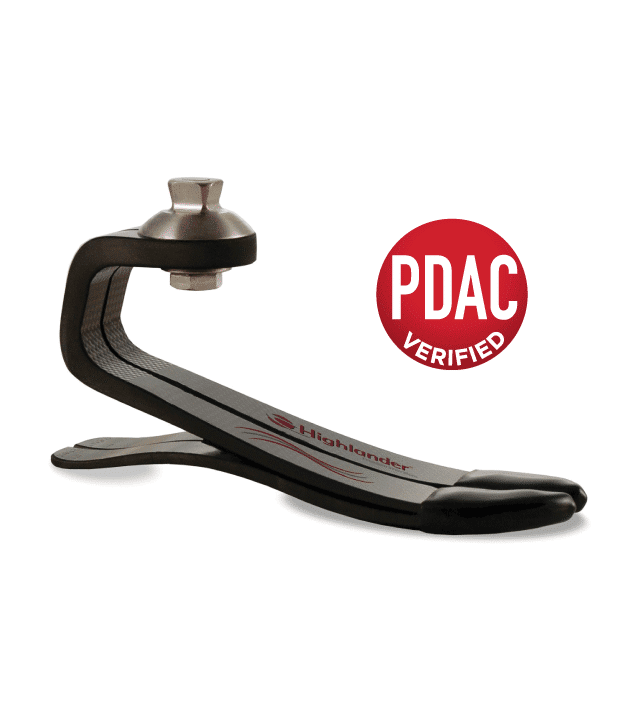

Freedom Highlander® and Highlander® MAX

The Freedom Highlander® prosthetic foot provides active patients with long residual limbs an efficient and smooth gait, with excellent energy return. A split toe provides excellent inversion-eversion, allowing users to walk and run with confidence on uneven terrain. The Freedom Highlander can be used with exoskeletal systems or users weighing up to 500lbs.** As a result, amputees once limited to lower functioning products can now enjoy the benefits provided by a premium energy storage and return device so they can walk farther, faster, longer.

​• Water-resistant.

• Engineered for active amputees with long residual limbs.

• Split toe provides excellent inversion-eversion.

• Offers ideal blend of stability and action, often preferred by transfemoral amputees.

• Can be designed for amputees weighing up to 500lbs with the Highlander® MAX option.

• Rated to 365lbs, 36-month warranty.

• PDAC Approved L-Code(s): L5981

Item N°.

FS3-00

FS3-H5

Weight (27 Cat 4, module with foot shell)

590g

Build Height*

22 – 25cm

3.875″ / 98mm

26 – 28cm

4.25″ / 108mm

29 – 31cm

4.75″ / 121mm

Heel rise

3/8″ / 10mm

*Build height based on size 27cm Cat 4 foot module with foot shell and 10mm heel height. Sandal-toe available for sizes 22-28cm.



Weight/ Activity level

100-115lbs 44-52kg

116-130lbs 53-59kg

131-150lbs 60-68kg

151-170lbs 69-77kg

171-195lbs 78-88kg

196-220lbs 89-100kg

221-255lbs 101-116kg

256-285lbs 117-130kg

286-325lbs 131-147kg

326-365lbs 148-166kg

366-420lbs 167-190kg

421-480lbs 191-218kg

481-500lbs 219-227kg

Low

1

1

2

3

4

5

6

7

8

9

10**

11**

12**

Moderate

1

2

3

4

5

6

7

8

9

10**

High

2

3

4

5

6

7

8

9

10**

11**

**Freedom Highlander MAX Custom order only.

NOTE: Increasing category numbers indicate increased keel response.
