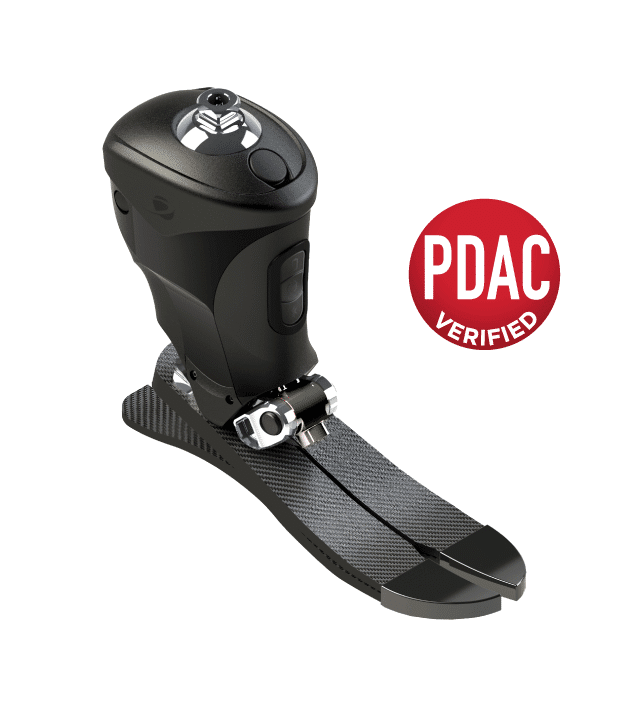

Freedom Kinnex 2.0

The Freedom Kinnex integrates the world’s fastest responding microprocessor ankle/foot technology and carbon fiber to provide low to moderate impact K3 ambulators the stability they expect — instantly. Unmatched ground compliance, improved comfort, and available heel height adjustments keep users firmly grounded and connected, wet or dry.

Designed for low to moderate impact K3 level ambulators that require unsurpassed ground compliance for everyday activities.

• Water ingress certified- IP67 rated for occasional submersion in water.

• Sophisticated microprocessor controlled resistance that helps optimize stability whenever changes in terrain or cadence occurs.

• Accommodates heel heights from 0-2” and allows user to program up to 100 shoes.

• 30° of microprocessor-controlled motion 20° plantar flexion / 10° dorsi flexion allows the ankle and foot to be ideally positioned in relation to the ground.

• A full length sole plate without bolts ensures seamless stance phase roll-over for superior comfort.

• GaitLab App for prosthetist use to set up the patient using a smart phone device (available on iOS and Android).

• Freedom Innovations App for the user to monitor battery status, make heel height adjustments, select shoes, and fine tune performance and comfort settings.

• User weight rating of 275lbs, 36-month warranty (optional 2 year warranty extension available at time of purchase).

• For patient testimonials, training videos, and more information visit www.FreedomKinnex.com

• PDAC Approved L-Code(s): L5973

Item

Freedom Kinnex™ 2.0

Weight (27 Cat 4, module only)

1489g

Build Height*

24 – 25cm

7.2” / 183mm

26 – 28cm

7.3″ / 186mm

29 – 30cm

7.3” / 186mm

*Build height based on size 27cm Cat 4 foot module with foot shell and 10mm heel height. Sandal-toe available for sizes 22-28cm.



Module selection according to activity and weight

Weight/ Activity level

100-115lbs 44-52kg

116-130lbs 53-59kg

131-150lbs 60-68kg

151-170lbs 69-77kg

171-195lbs 78-88kg

196-220lbs 89-100kg

221-255lbs 101-116kg

256-275lbs 117-125kg

Low

1

1

2

3

4

5

6

7

Moderate

1

2

3

4

5

6

7

NOTE: Increasing category numbers indicate increased keel response.
